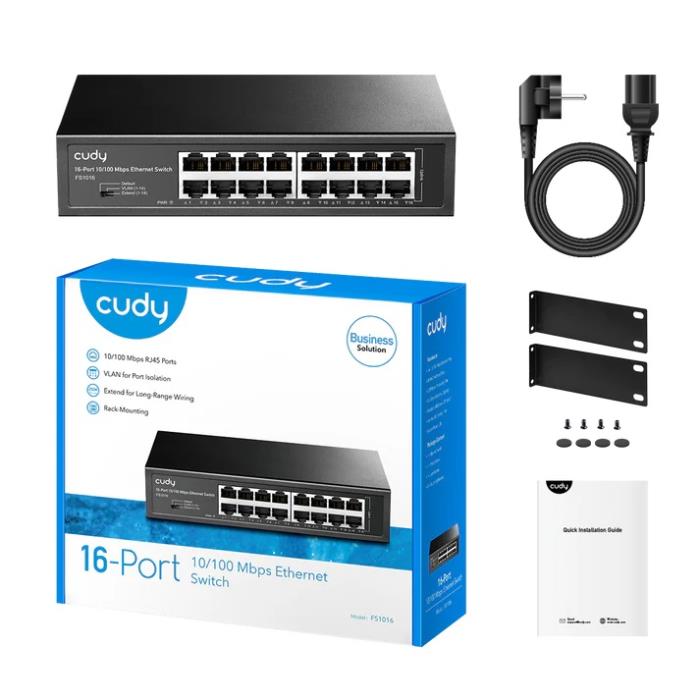

A 16-FE switch with meta casing ideal for wired network expansion in home and office environments.
VLAN Mode
VLAN mode for port isolation to enhance network security. With VLAN mode,
downlink ports 1-14 can only communicate with uplink ports.
Extend Mode
Prolong the transmission distance of ports 1-22 to a
maximum of 250 meters and simplify installation.
Power Saving
Reduce power consumption when Ethernet ports are idle,
saving the electricity expenses on networking facilities.
Rackmount
Standard 1U rackmount design with included mounting
kits simplifies your deployment.
Comply with IEEE802.3, IEEE 802.3u, IEEE802.3x Ethernet standards
16x 10/100Mbps Auto-Negotiation RJ45 Ports MDI/MDIX
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure
for Half-duplex Mode
8K entry MAC address table of the switch with auto-learning and auto-aging
Extend/Normal/VLAN DIP Switch for 250 meters transmission or improved
expansion security
LED indicators for monitoring Port Link / Activity

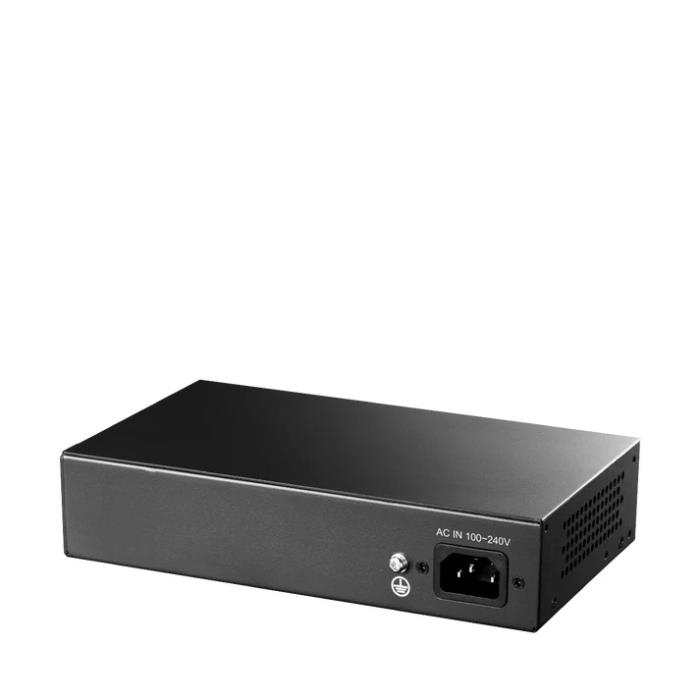

External power supply
Desktop or Rack-Mounting
